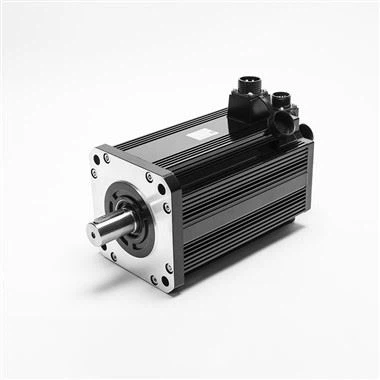

60nm Servo Motor

60nm Servo motor is an important part of the servo system, speed and trajectory control is execution
components; general rotor is a permanent magnet, drive controlled U / V / W three-phase electric
electromagnetic field, the rotor under the magnetic field rotation. Meanwhile, the encoder of the motor
feeds back a signal to the driver, and the driver compares the feedback value with the target value to
adjust the rotation angle of the rotor. The accuracy of the 60nm servo motor depends on the accuracy of
the encoder.

Send Inquiry

Description

Products Description

This 60nm Servo Motor is a motor that can rotate with high precision. It consists of a control circuit that provides feedback on the current position of the motor shaft and allows it to rotate with high precision. As an important part of the servo system, this motor has good speed and trajectory control capabilities, which can help you achieve accurate operation.

Features

This 60nm Servo Motor is equipped with a permanent magnet rotor, which will rotate under the action of magnetic field and adjust the rotation angle in time to make your operation process more accurate. At the same time, it has a sensitive gear device, even though the structure is very small, it can still obtain very high torque. In addition, it can help you rotate an object at a specific angle or distance, so it is widely used in many applications, such as remote control helicopters, aircraft, robots, etc.

Specifications

Flange	SQ-1	Rated Voltage (V)	Rated Power (KW)	Rated Torque （N.m）	Rated Current（A）	Rated Speed (rpm)
180	180ST-M17215	220/380	2.7	17.2	10.5/6.5	1500
180ST-M19015	220/380	3.0	19	12/7.5	1500
180ST-M21520	220/380	4.5	21.5	16/9.5	2000
180ST-M27010	220/380	2.9	27	12/7.5	1000
180ST-M27015	220/380	4.3	27	16/10	1500
180ST-M35010	220/380	3.7	27	16/10	1000
180ST-M35015	220/380	5.5	35	24/12	1500
180ST-M48015	220/380	7.5	48	32/20	1500
220	220ST-M67010	220	7.0	67	31.3	1000
220ST-M95515	220	15	95.5	67	1500
220ST-M67015	220	10.5	67	26	1500
220ST-M95015	220	15	95.5	38	1500

Detailed parameters

motor details
