Products Description
The servo motor can control the speed, the position accuracy is very accurate, can convert the voltage signal into torque and speed to drive the control object. The rotor speed of the servo motor is controlled by the input signal and can react quickly. In the automatic control system, it is used as an execution element, and has the characteristics of small electromechanical time constant and high linearity, so the received electrical signal can be converted into the angular displacement or angular speed output on the motor shaft.

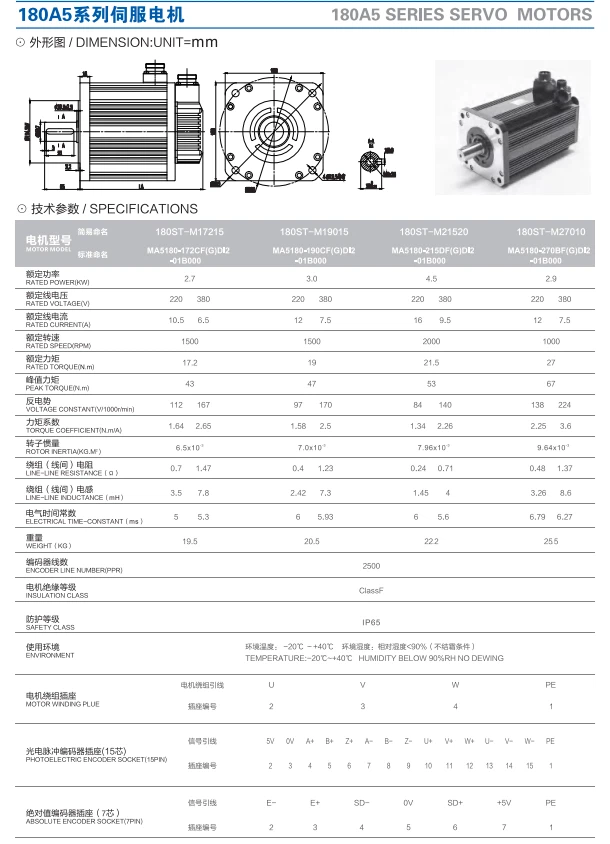

Specifications:
|
Flange |
SQ-1 |
Rated Voltage (V) |
Rated Power (KW) |
Rated Torque （N.m） |
Rated Current（A） |
Rated Speed (rpm) |
|
180 |
180ST-M19015 |
220/380 |
3.0 |
19 |
12/7.5 |
1500 |
|
180ST-M21520 |
220/380 |
4.5 |
21.5 |
16/9.5 |
2000 |
|
|
180ST-M27010 |
220/380 |
2.9 |
27 |
12/7.5 |
1000 |
Advantages:
Higher accuracy and stability: the servo motor realizes the closed loop control of position, speed and torque, which not only overcomes the problem of step motor in operation, but also provides sufficient guarantee for the production and processing of equipment in terms of accuracy and stability.
Applications:
Servo motor can be applied in the spark machine, manipulator, precise machine and so on.2500P / R high analysis standard encoder and speed detector can be configured at the same time, which can add speed reducer to bring reliable accuracy and high torque to mechanical equipment.
Certificates:
Exhibitions:
Why choose us?
FAQ
1.Q: Can you provide OEM services? Can I request my own logo?
A: Yes, we can provide OEM services for volume production. Feel free to talk to us about your branding needs.
2.Q: If I need a special motor , can you manufacture?
A: Certainly, you can. If you want to replace a motor in an existing application,please send us a drawing or sample and we can help you find a suitable replacement. Or, you can contact us and describe your application, our engineers will work together with you to find a solution tailor-made for you.
3.Q: What is the exact MOQ or price for your product ?
A:As an OEM company.we can provide and adapt our products to a wide range of needs.Thus MOQ and price may greatly vary with size, material and further specifications;For instance costly products or standard products will usually have a lower MOO.Please contact us with all relevant details to get the most accurate quotation.
