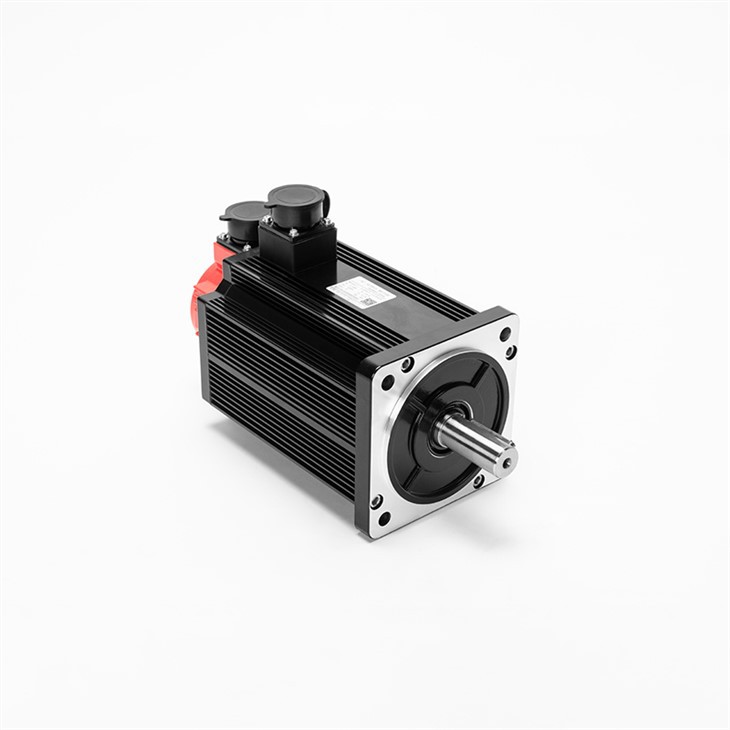

Products Description
Servo motor is an engine that controls the operation of the mechanical elements in the servo system. It can control the speed and convert the voltage signal into the torque and rotational speed to drive the control object.

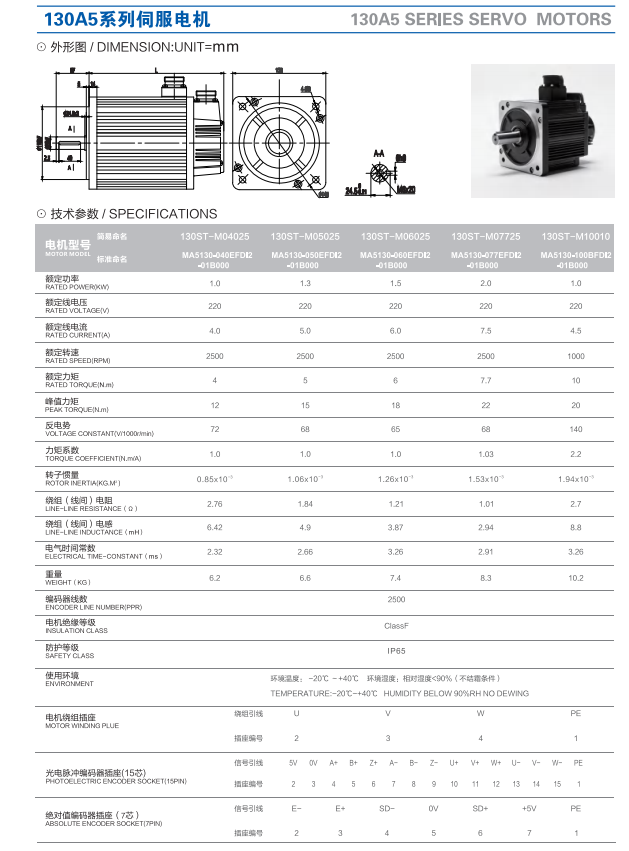

Specifications:
|
Flange |
SQ-1 |
Rated Voltage (V) |
Rated Power (KW) |
Rated Torque （N.m） |
Rated Current（A） |
Rated Speed (rpm) |
|
130 |
130ST-M10010 |
220 |
1.0 |
10 |
4.5 |
1000 |
|
130ST-M10015 |
220 |
1.5 |
10 |
6 |
1500 |
|
|
130ST-M10025 |
220 |
2.6 |
10 |
10 |
2500 |
|
|
130ST-M15015 |
220 |
2.3 |
15 |
9.5 |
1500 |
|
|
130ST-M15025 |
220 |
3.8 |
15 |
13.5 |
2500 |
Advantages:
The servo motor is maintenance-free, with high efficiency, low operating temperature, small electromagnetic radiation, long life, and can be used in various environments. The disadvantage of brushless servo motors is that they are high price and easy to lose effect in high magnetic field environment.
Applications:
The servo drive system of open winding motor has the advantages of multi-level voltage output ability, reducing switching loss and certain fault tolerance ability, and the application of industrial servo control in domestic colleges and universities is increasing. The switching power supply adopts voltage conversion and power grid isolation, which compared with the traditional DC voltage stabilizing power supply has the advantages of high efficiency, high stability and small size.
Certificates:
Exhibitions:
Why choose us?
FAQ
Q: Could you send me a price list?
A: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it's difficult for us to provide a price list.
If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q: Are you motors reversible?
A: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A5: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:How about your delivery time?
A: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty.
For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.
Pleasecontact us for final reference.
Q:What's your warranty terms?
A: 18 months.
